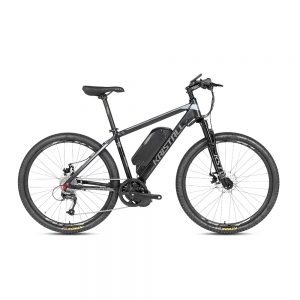

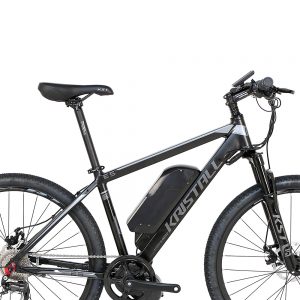

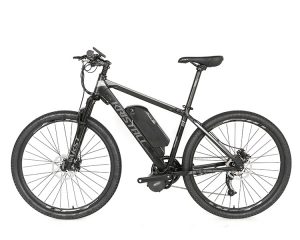

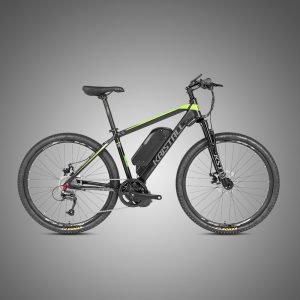

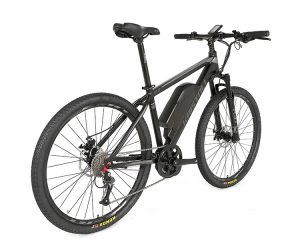

Adult large power 750W mid drive electric bike

You are here:

Home
Project
Adult large power 750W mid…

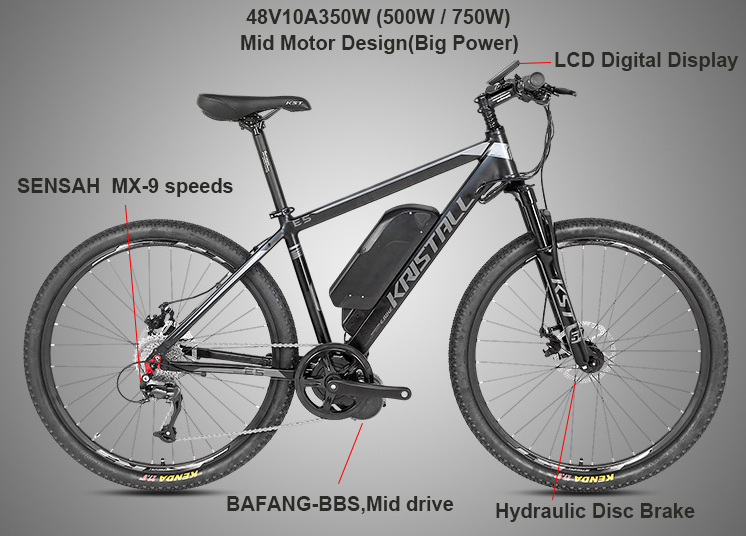

1.Frame:E5, alloy AL6061,Smooth welding&inner Cable,Matte,UV decals.
2.Handelbar Sets:Alu alloy with Matte,Hb31.8*680,St90,Sp31.6*350mm.
3.Fork:KST Alu alloy, Coil suspension, Manual-lockout.
4.Derailleur Lever: SENSAH MX-9 speeds

Item	Electric Power Assist,90~130KM Bike
	Pure Electric,50~70KM
Motor Assist speed	Max 40KMH, Optional speed limit 25KMH
Battery	LH18650 Power Lithium, 48V10Ah
Full charging Time	4-6 Hours
Charging Times	>1000 Times
Charging Protect	Overvoltage,Overcurrent Protection,etc.
	ShortCircuit,ReversecConnection Protection,etc.
Motor	BAFANG-BBS,Mid drive,48V350W / 500W / 750W, DC Brushless,Toothed,Low resistance&noise
Max Torque	≈80 N.M
Waterproof grade	IP54
Controller	5 Shifts IC control system,Built-in Motor
	Sine wave intelligent control
Monitor	LCD digital display control instrument
Waterproof Grade	IP65
Assist Sensor	Built-in motor, Speed(cadence)
Throttle	Stepless speed regulation Lever
Brake power off	Power off brake Lever and Pedal Stop
Speed sensing	External speed sensor to Wheel
Wire connector	All waterproof quick connector

More details;

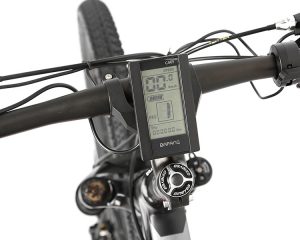

LCD
BAFANG Digital display control
instrument
>1.Function:MPH,Miles,Electricity,Shift,Failure,etc.
>2.Setting:Mileage cleared,Wheel size,etc.
>3.Waterproof Grade:IP65
Controller
>1.5 Shifts intelligent IC control system
>2.Sine wave intelligent control

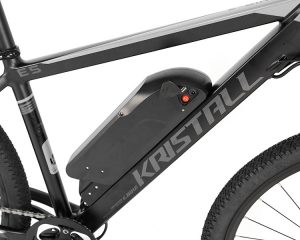

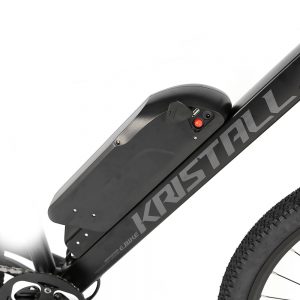

Battery
LH18650 Power Lithium, (48V10Ah available)
>1.Functions:USB2.0 port 5V2A (For phones, etc.)
>2.Charging Time:4-6 Hours
>3.Charging Times:>1000 Times
>4.Charging Protect:Overvoltage,Overcurrent Protection,etc.ShortCircuit,ReversecConnection Protection,etc.

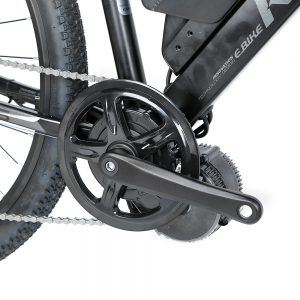

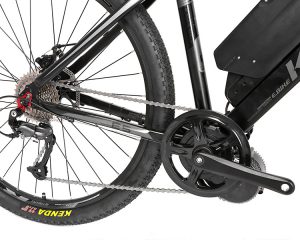

Motor
BAFANG-BBS,Mid drive,48V350W / 500W / 750W
>1.Features:Low resistance&noise
>2.Max Torque:≈80 N.M
>3.IP54
